SP-L8S6P 30V 33.6V 20.4Ah Max. 45A Lithium Battery Pack
Standard Battery Pack Li-ion
30V / 20400mAh / 612Wh
Specification
| Electrical Parameters | |
| Standard Capacity | 20.4Ah |
| Standard Voltage | 29.6V |
| Operating Voltage | 22V~33.6V |
| Max. Charge Current | 4A |
| Max. Charge Voltage | 33.6±0.05V |
| Max. Discharge Current | 45A |
| Off Discharge Voltage | 20V |
| Cycle Life (500 Times) | >16.32Ah |
| Charging Method | CC-CV |
| Size | 170*150*80(mm)±0.5 |
| Weight | 2.2Kg±0.5 |
| Operating Temperature | -20~45℃ |
| Operating Temperature | -20~35℃ |
| Protection Circuit | |
| Protection Circuit Board | equipped |
| Over Charge Protection | 34±0.025V / 0.5S-1.5S |
| Over Discharge Protection | 20±0.062V / 10mS—150mS |
| Exterior short circuit | Cut load / 200-500us |
| Output Connector | |
| Charge / Discharge Connector | Can be customized |
| Application | |
| Suitable for measuring devices, electronics, test equipment, security and medical application etc. | |
Recommended Accessories
| Type | Model | |
| Standard battery charger for optimized charging process
Customized output connector and Optional wall socket Built-in cooling fan |
 |

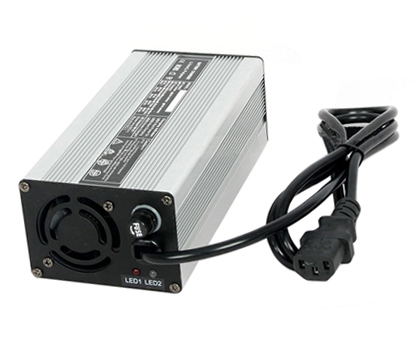

SP-C8S4A
Lithium Battery Charger 33.6V / 4A |
