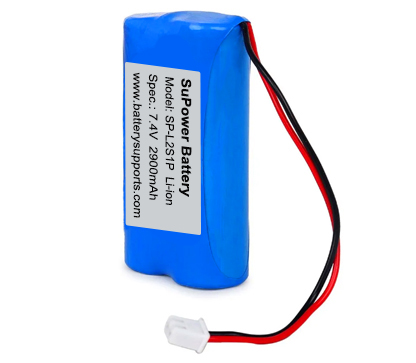

SP-L2S1P 7.4V 2900mAh Max. 2A Lithium Battery Pack
Standard Battery Pack Li-ion
7.4V / 2900mAh / 21.46Wh
Specification
Electrical Parameters |
|
Standard Capacity |
2.9Ah |
Standard Voltage |
7.4V |
Battery Resistance (whole pack) |
≤50mΩ |
Max. Charge Current |
2A |
Max. Charge Voltage |
8.4±0.05V |
Max. Discharge Current |
2A |
Off Discharge Voltage |
5.5V |
Cycle Life (500 Times) |
>2.32Ah |
Charging Method |
CC-CV |
Size |
68*38*20(mm)±0.5 |
Weight |
95g±0.5 |
Operating Temperature |
-20~45℃ |
Storage Temperature |
-20~35℃ |
Protection Circuit |
|
Protection Circuit Board |
equipped |
Over Charge Protection |
8.5±0.025V / 0.5S-1.5S |
Over Discharge Protection |
5.0±0.062V / 10mS—150mS |
Exterior short circuit |
Cut load / 200-500us |
Output Connector |
|
Charge / Discharge Connector |
JST-XH 2.54 (Can be customized) |
Application |
|
Suitable for industrial and medical devices, etc |
Recommended Accessories
Type |
|
Model |
Standard battery charger for optimized charging process
DC5.5#2.1 with wall socket
|
|
SP-C2S2A
Lithium Battery Charger
8.4V / 2A |
