SP-L3S18P 12V 60Ah Max 61.2Ah 15A Lithium Ion Battery Pack
Standard Battery Pack Li-ion
12V / 61.2Ah / 734.40Wh
Specification
| Electrical Parameters | |
| Standard Capacity | 61.2Ah |
| Standard Voltage | 12V |
| Operating Voltage | 8.25V~12.6V |
| Max. Charge Current | 12A |
| Max. Charge Voltage | 12.6±0.05V |
| Max. Discharge Current | 15A |
| Off Discharge Voltage | 8.25V |
| Cycle Life (500 Times) | >48.96Ah |
| Charging Method | CC-CV |
| Size | 120*180*75(mm)±0.5 |
| Weight | 2.5kg±0.1 |
| Operating Temperature | -20~45℃ |
| Storage Temperature | -20~35℃ |
| Protection Circuit | |
| Protection Circuit Board | equipped |
| Over Charge Protection | 12.75±0.025V / 0.5S-1.5S |
| Over Discharge Protection | 7.5±0.062V / 10mS—150mS |
| Exterior short circuit | Cut load / 200-500us |
| Output Connector | |
| Charge / Discharge Connector | Can be customized |
| Application | |
| Suitable for back up power, electronics, industrial and solar engery etc. | |
Recommended Accessories
| Type | Model | |
|
Standard battery charger for optimized charging process Customized output connector and Optional wall socket Built-in cooling fan |
 |

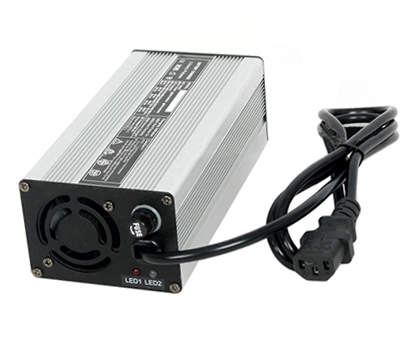

SP-C3S10A
Lithium Battery Charger 12.6V / 10A |
