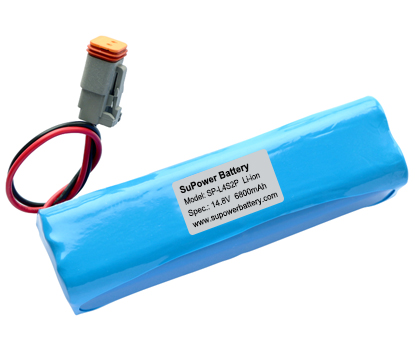

SP-L4S2P  14.8V 6800mAh Max. 4A Lithium Battery Pack

Standard Battery Pack Li-ion

14.8V  /  6800mAh / 100.64Wh


Contact Supplier

Specification

Electrical Parameters
Standard Capacity 6.8Ah
Standard Voltage 14.8V
Operating Voltage 11V~16.8V
Max. Charge Current 2A
Max. Charge Voltage 16.8±0.05V
Max. Discharge Current 4A
Off Discharge Voltage 11V
Cycle Life (500 Times) >5.44Ah
Charging Method CC-CV
Size 138*38*38(mm)±0.5
Weight 368g±0.5
Operating Temperature -20~45℃
Storage Temperature -20~35℃
Protection Circuit
Protection Circuit Board equipped
Over Charge Protection 17±0.025V / 0.5S-1.5S
Over Discharge Protection 10.0±0.062V / 10mS—150mS
Exterior short circuit Cut load / 200-500us
Output Connector
Charge / Discharge Connector Can be customized
Application
Suitable for bike light, torch, LED lighting, industrial, electronics and medical devices, etc

Recommended Accessories

Type Model

Standard battery charger for optimized charging process

DC5.5#2.1 with wall socket

SP-C4S1A

Lithium Battery Charger

16.8V  /  1A
