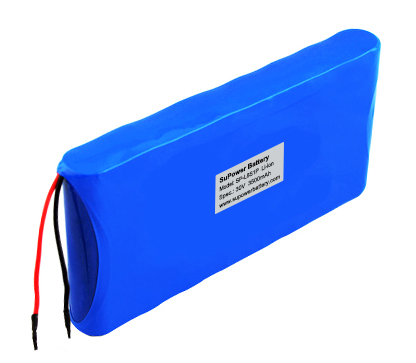

SP-L8S1P  30V 33.6V 3500mAh Max. 8A Lithium Battery Pack

Standard Battery Pack Li-ion

30V  /  3500mAh / 105Wh

Contact Supplier


Electrical Parameters
Standard Capacity 3.5Ah
Standard Voltage 29.6V
Operating Voltage 22V~33.6V
Max. Charge Current 2A
Max. Charge Voltage 33.6±0.05V
Max. Discharge Current 8A
Off Discharge Voltage 20V
Cycle Life (500 Times) >2.8Ah
Charging Method CC-CV
Size 70*150*32(mm)±0.5
Weight 365g±0.5
Operating Temperature -20~45℃
Operating Temperature -20~35℃
Protection Circuit
Protection Circuit Board equipped
Over Charge Protection 34±0.025V / 0.5S-1.5S
Over Discharge Protection 20±0.062V / 10mS—150mS
Exterior short circuit Cut load / 200-500us
Output Connector
Charge / Discharge Connector Can be customized
Suitable for measuring devices, electronics, test equipment, security and medical application etc.

Recommended Accessories

Type Model

Standard battery charger for optimized charging process

DC5.5#2.1 with wall socket


Lithium Battery Charger

33.6V  /  2A
