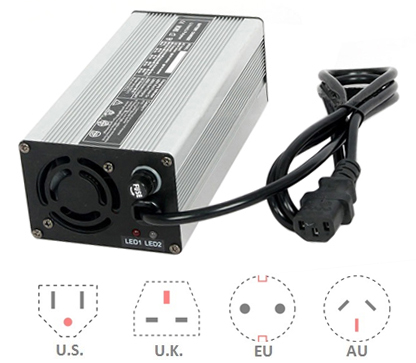

SP-C6S12A 25.2V 12A Lithium Battery Charger
Standard Battery Charger (With inner cooling fan)
25.2V / 12A / 110V~240V
Specification
| Electrical Parameters | |
| Input Voltage | 110V~240V |
| Output Voltage | 25.2V±0.05V |
| Charge Current | 12A |
| Charge Mode | CC-CV |
| Output Power | 360W |
| Humidity | <+90 |
| Rating Frequency | 50-60Hz |
| AC Power Plug Type | US / EU / UK / AU Wall Socket |
| Connector Type | Can be customized |
| Size | 180*90*63(mm)±0.5 |
| Weight | 1.2kg±0.5 |
| Operating Temperature | -10~45℃ |
| Storage Temperature | -10~35℃ |
| Protection | |
| Protection Circuit | Output shorted and overload protection |
| Over Charge Protection | Cut off when battery voltage reaches 25.2V |
| Efficiency | > 70 % |
| Exterior short circuit | Cut off |
| Charge time | |
| Calculation
(1000 mAh = 1 Ah) |
= (Ah rate of the pack x 1.5) /
12A charge current |
| LED Indicator | |
| Red – Charging –> Green – Fully charged | |
