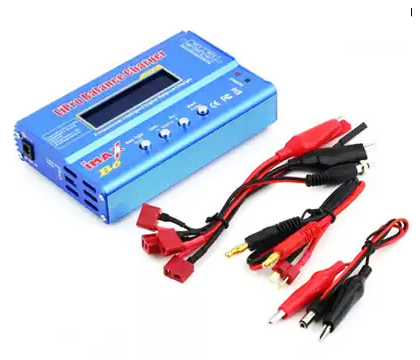

iMax B6 Lithium LiPO Smart Balance Charger
Standard Battery Charger For RC Aircraft, Cars, Boats
1S~6S / 0.1A~5A / 110V~220V
Specification
| Electrical Parameters | |
| Input Voltage | 110V~220V |
| Output Voltage | 4.2V ~ 25.2V |
| Charge Current | 0.1A ~ 5A |
| Charge Mode | CC-CV |
| Output Power | 80W |
| Humidity | <+50 |
| Rating Frequency | 50-60Hz |
| AC Power Plug Type | US / EU / UK / AU Wall Socket |
| Connector Type | Tamiya / XT / T plug |
| Size | 133*87*33(mm)±0.5 |
| Function | Balance Charge 1S~6S |
| Operating Temperature | -10~45℃ |
| Storage Temperature | -10~35℃ |
| Protection | |
| Protection Circuit | Output shorted and overload protection |
| Over Charge Protection | Cut off when battery is full |
| Efficiency | > 70 % |
| Exterior short circuit | Cut off |
| Charge time | |
| Calculation
(1000 mAh = 1 Ah) |
= (Ah rate of the pack x 1.5) / charge current |
| LED Indicator | |
| LED Display | |
