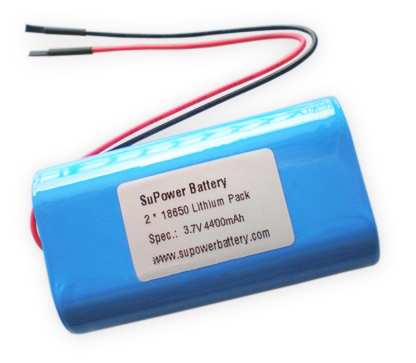

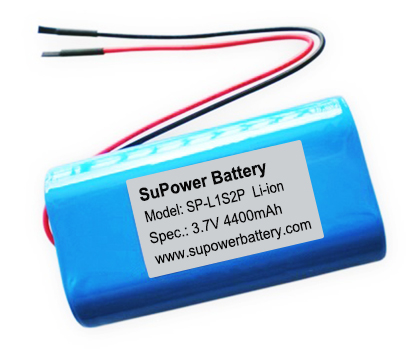

SP-L1S2P  3.7V 4400mAh Max. 2A Lithium Battery Pack

Standard Battery Pack Li-ion

3.7V  /  4400mAh / 16Wh

Contact Supplier


Electrical Parameters
Standard Capacity 4.4Ah
Standard Voltage 3.7V
Battery Resistance (whole pack) ≤50mΩ
Max. Charge Current 2A
Max. Charge Voltage 4.2±0.05V
Max. Discharge Current 2A
Off Discharge Voltage 2.75V
Cycle Life (500 Times) >3.52Ah
Charging Method CC-CV
Size 68*38*20(mm)±0.5
Weight 95g±0.5
Operating Temperature -20~45℃
Storage Temperature -20~35℃
Protection Circuit
Protection Circuit Board equipped
Over Charge Protection 4.25±0.025V / 0.5S-1.5S
Over Discharge Protection 2.50±0.062V / 10mS—150mS
Exterior short circuit Cut load / 200-500us
Output Connector
Charge / Discharge Connector Available (Can be customized)
Suitable for industrial and medical devices, etc

Recommended Accessories

Type Model

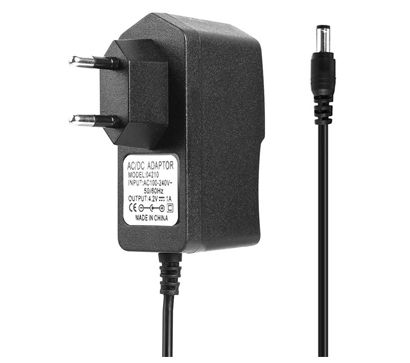

Standard battery charger for optimized charging process

DC5.5#2.1 with wall socket


Lithium Battery Charger

4.2V  /  1A
